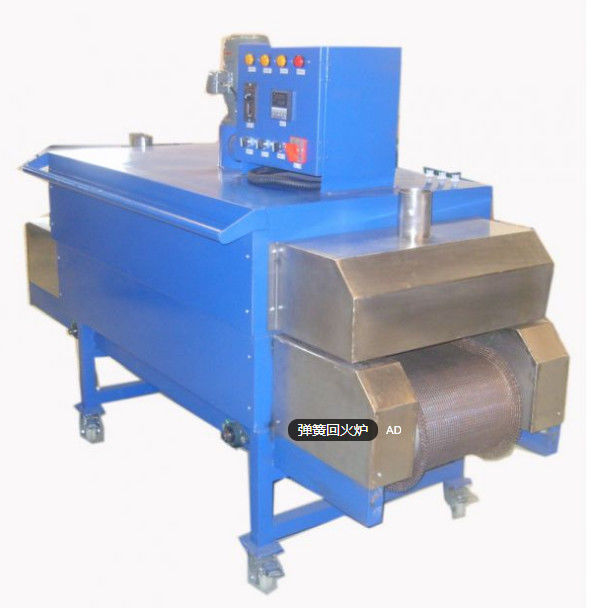

Stainless Steel Continuous Tempering Furnace 3 - Phase 380v 50hz

Detail produk:

Place of Origin:	China
Nama merek:	XD
Sertifikasi:	CE / ISO9001
Model Number:	XD530

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Negotiable
Packaging Details:	Standard heat treated wooden case
Delivery Time:	15 days
Syarat-syarat pembayaran:	TT LC
Supply Ability:	30 sets per month

Kontak

Detil Deskripsi produk

Operation::	Automatic	Weight::	150kg
Power ac::	3-phase 380v 50hz	Temperature::	500 degree
Application::	heating up all kinds of springs	Transporting belt::	Stainless steel
Cahaya Tinggi:	continuous furnace heat treatment , hardening tempering furnace

XDR520-690 Continuous tempering furncace for heat treating all models of springs

Technical specification:

Model	Max temperature	Power	Temperature control	*LWH* Effective heating area(M)	*LWH* Overall dim(M)
XDR-520	500℃	30KW	2	2×0.5×0.09	3.4×1.1×1.9
XDR-530		40KW	3	3×0.5×0.12	5.1×1.1×1.9
XDR-630		48KW	3	3×0.6×0.12	5.1×1.2×1.9
XDR-540		55 KW	4	4.5×0.5×0.12	6.7×1.1×1.9
XDR-640		65 KW	4	4.5×0.6×0.12	6.7×1.2×1.9
XDR-740		65 KW	3	4×0.7×0.12	6.1×1.3×1.9
XDR-840		93KW	4	4.5×0.8×0.12	7×1.4×1.9
XDR-650		78 KW	4	5×0.6×0.15	7.2×1.2×1.9
XDR-670		93 KW	5	7×0.6×0.2	9.2×1.2×1.9
XDR-590		120 KW	5	9×0.5×0.2	11×1.3×1.6
XDR-690		137 KW	5	9×0.6×0.2	11×1.4×1.6

Details:
1.The continuous furnaces are produced by adopting advanced technologies abroad.
Main features include precision temperature control, energy saving, and less pollution.
2. Work pieces can be produced constantly with the furnace in the production line.
3. Our furnaces are exported to Europe, America and Southeast Asia.
