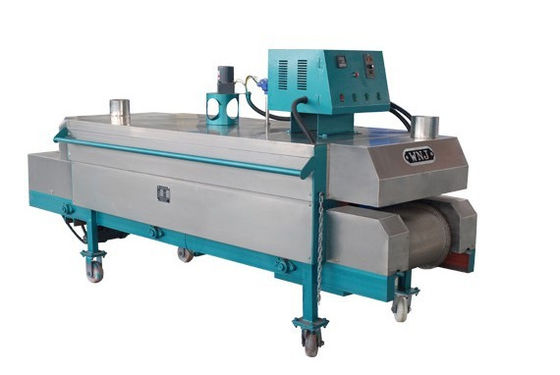

Energy Saving Continuous Tempering Furnace With Precision Temperature Control

Detail produk:

Place of Origin:	China
Nama merek:	XD
Sertifikasi:	CE / ISO9001
Model Number:	XD740

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Negotiable
Packaging Details:	Standard heat treated wooden case
Delivery Time:	15 days
Syarat-syarat pembayaran:	TT LC
Supply Ability:	30 sets per month

Kontak

Detil Deskripsi produk

Operation::	Automatic	Weight::	800kg
Power ac::	3-phase 380v 50hz	Transporting belt::	Stainless steel
Working temperature::	500 degree	Package::	Wooden case
Cahaya Tinggi:	continuous furnace heat treatment , hardening tempering furnace

XDR520-690 Continuous tempering furncace for heat treating all designs of springs

Details:
1.The continuous furnaces are produced by adopting advanced technologies abroad.
Main features include precision temperature control, energy saving, and less pollution.
2. Work pieces can be produced constantly with the furnace in the production line.
3. Our furnaces are exported to Europe, America and Southeast Asia.

Technical specification:

Model	Max temperature	Power	Temperature control	*LWH* Effective heating area(M)	*LWH* Overall dim(M)
XDR-520	500℃	30KW	2	2×0.5×0.09	3.4×1.1×1.9
XDR-530		40KW	3	3×0.5×0.12	5.1×1.1×1.9
XDR-630		48KW	3	3×0.6×0.12	5.1×1.2×1.9
XDR-540		55 KW	4	4.5×0.5×0.12	6.7×1.1×1.9
XDR-640		65 KW	4	4.5×0.6×0.12	6.7×1.2×1.9
XDR-740		65 KW	3	4×0.7×0.12	6.1×1.3×1.9
XDR-840		93KW	4	4.5×0.8×0.12	7×1.4×1.9
XDR-650		78 KW	4	5×0.6×0.15	7.2×1.2×1.9
XDR-670		93 KW	5	7×0.6×0.2	9.2×1.2×1.9
XDR-590		120 KW	5	9×0.5×0.2	11×1.3×1.6
XDR-690		137 KW	5	9×0.6×0.2	11×1.4×1.6
