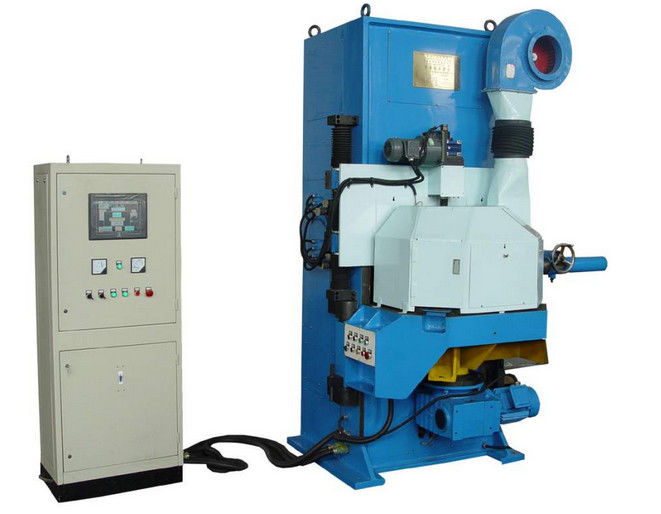

Name: Fast Feeding Speed Spring End Grinding Machine , Spring Height 20 - 330mm
Brand: Xinding
SKU: XDM-G255

Rumah Produk Spring End Grinding Machine

Fast Feeding Speed Spring End Grinding Machine , Spring Height 20 - 330mm

Detail produk:

Place of Origin:	China
Nama merek:	Xinding
Sertifikasi:	CE / ISO9001
Model Number:	XDM-G255

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Negotiable
Packaging Details:	Standard heat treated wooden case
Delivery Time:	15 days
Syarat-syarat pembayaran:	TT LC
Supply Ability:	20 sets per month

Kontak

Detil Deskripsi produk

Wire diameter:	3.00-10.00mm	Power:	23kw
Weight:	2800kg	Package::	Wooden case
Control::	CNC	Precision::	High
Cahaya Tinggi:	spring grinding machine , spring end grinder

CNC controlled spring end grinding machine for all models of spring

Technical Parameter:

Gringding Wheel	Ф420*50mm
Feeding Plate	Ф580mm
MAX.O.D	Ф5-120mm
Wire Diameter	Ф 3.00-10.00mm
Spring Height	20-330mm
Power	23KW
Overall Dimension	L1800W1850H2450
Weight	2800KG

Details:

1. Vertical double surface grinding machine with CNC control.
This machine is equipped with Mitsubishi CNC system to control grinding process on both ends of springs simultaneously.
2. Feeding speed of grinding heads is adjustable on the basis of pressure from springs.
Fine grinding process is available,as well as compensation function on grinding wheels. The grinding process is operated manually and automatically.
3. For replacing is very suitable for high-precision grinding proposal.
