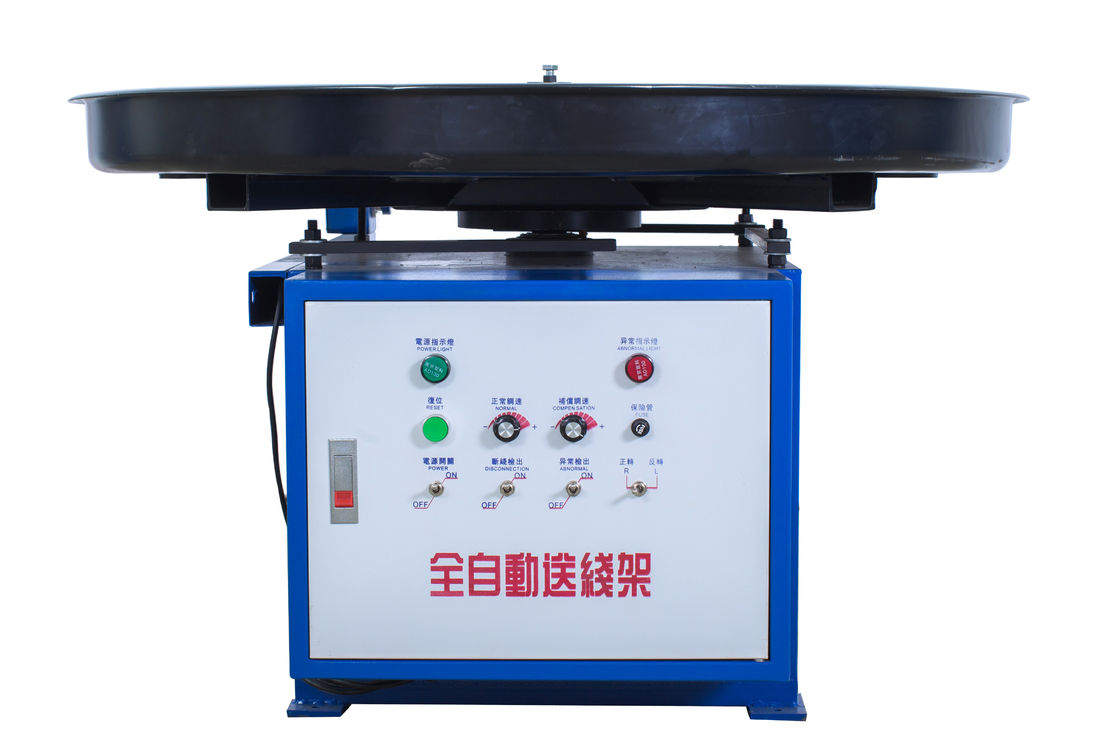

Name: Short Lines Warning Wire Decoiler 400kg Loading , Max Speed Of Table 100rpm
Brand: XD
SKU: 400

Short Lines Warning Wire Decoiler 400kg Loading , Max Speed Of Table 100rpm

Detail produk:

Place of Origin:	China
Nama merek:	XD
Sertifikasi:	CE / ISO9001
Model Number:	400

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity:	1 set
Harga:	Negotiable
Packaging Details:	Standard heat treated wooden cases
Delivery Time:	7 days
Syarat-syarat pembayaran:	TT LC
Supply Ability:	50 sets per month

Kontak

Detil Deskripsi produk

Application::	Auxilliary equipment for spring machine	Machine painting::	Blue
Package::	Wooden case	Motor::	1.2kw
Diamter of table::	930mm	Speed of table::	100rpm
Cahaya Tinggi:	wire feeding machine , wire feeding equipment

CNC spring machine auxiliary equipment of wire decoiler 400kg loading

Technical specifications:

Model	XD-400
Max Capacity of load	400KG
Max Speed Of Table	100rpm
Diameter Of Table	930mm
Motor	1.2KW
Dimensions	550 * 500 * 880 mm
Weight	110KG

Product Description:

Automatic spring wire decoiler is applying with the CNC spring forming machine. It is stable and durable.

It will stop automatically when the feeding is abnormal. The wire feed rate can be automatically adjusted

during working, synchronizing the speed with the spring forming machine. It will stop automatically in

case of faults like kinking of wire.

Features Of spring wire decoiler:

1, Wrap lines warning function

2, Short lines warning function
3, To move the feeding

4, Automatic feeding

5, Manually even feeding

6, Forward/reversal rotation

Label:

Kontak Person: Ralph chen

Tel: +8613580987891
